You can unlock/renew Audi S5 5th generation immobilizer key with aXhorse VVDI mini key tool.

Unlocking work takes only 15 minutes.

Key type: Hitag VAG
Key marking 8T0959754S
1. Remove the key blade.
2. Remove the battery.
3. Remove the key board.
4. Solder the wires from the VVDI Mini key tool.
5. Press unlock.
6. Put the key back together.

7. Read the key again. It has been unlocked.

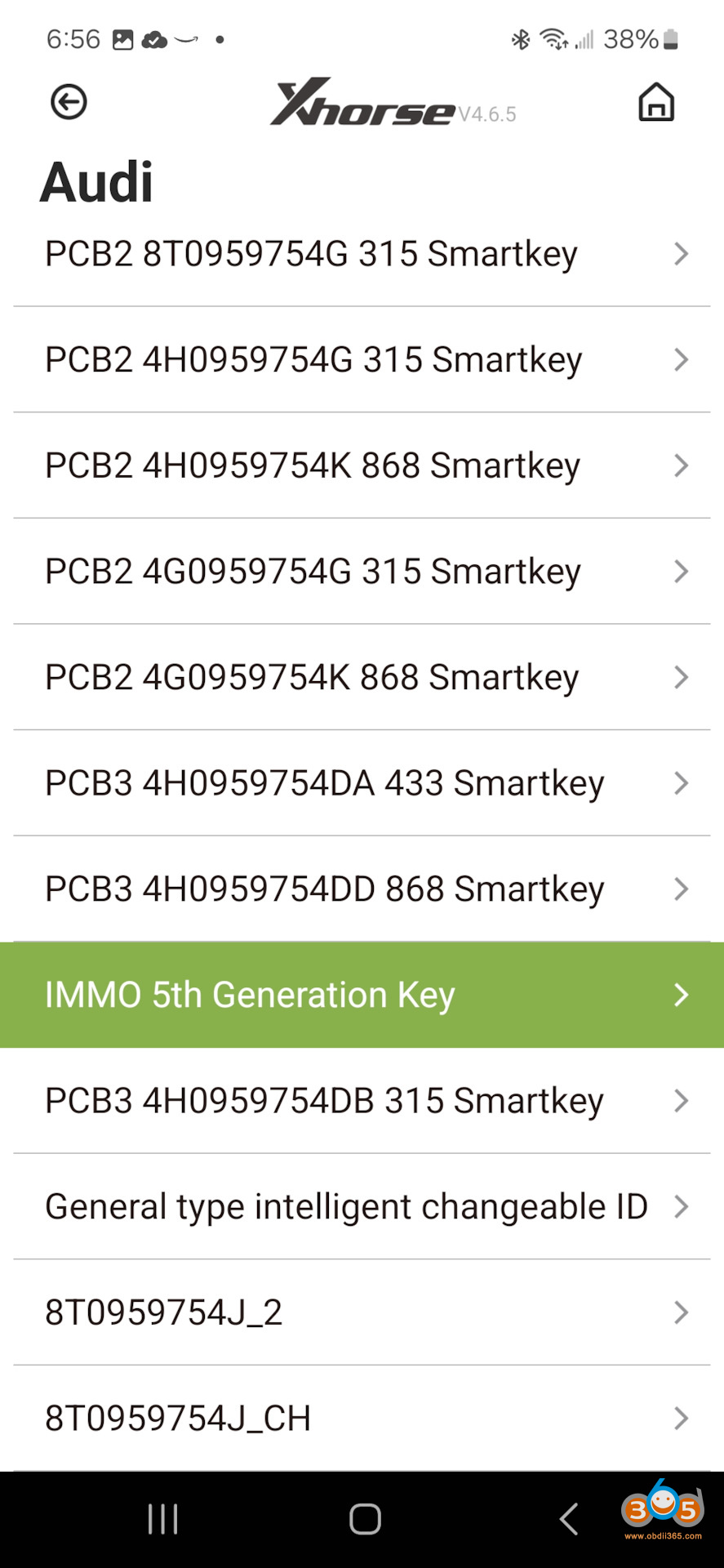

Select Remote Renew- Audi- IMMO 5th Generation Key

Check wiring diagram.

Solder wires to the key board.

Unlock remote.

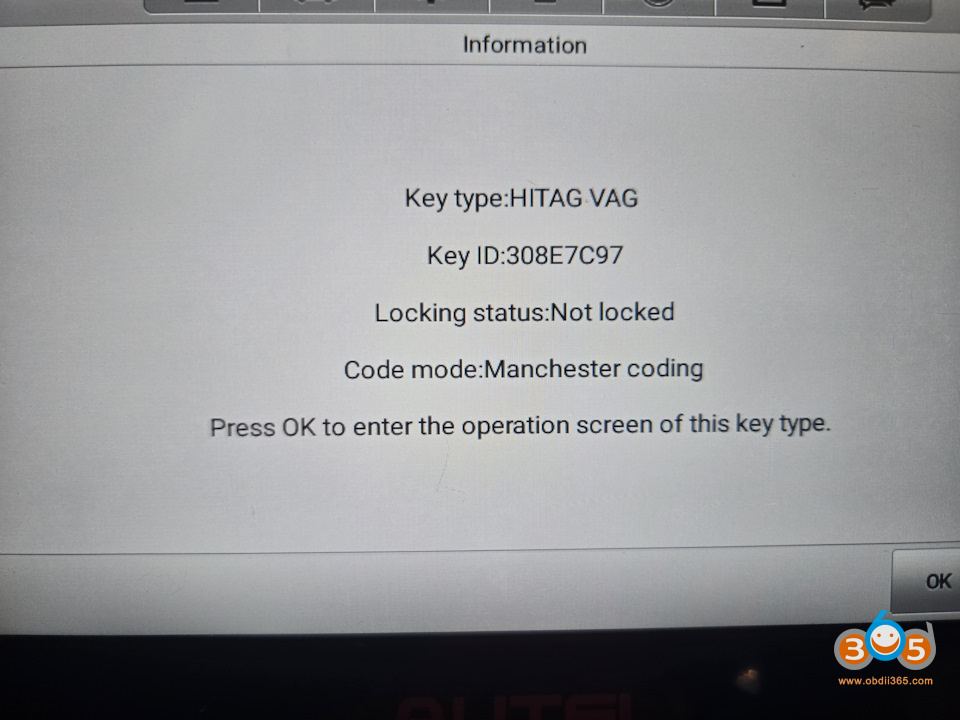

Read key again. It has been unlocked.

Posted by: jean at 05:52 AM | No Comments | Add Comment
Post contains 104 words, total size 11 kb.

Autel IM508S orXhorse Multi Progto Clone BMW F10 CAS4 5M48H immobilizer module?

You can clone CAS4 with Xhorse, Autel and other programmers.
The procedure for cloning or creating a backup copy is the same for everyone,butAutel IM508Scan do this via the OBD connector, which simplifies the process.

With Multi Prog, need to disassemble CAS4 module, read by either soldering or solder-free adapter.

With Autel IM508S, you can make a backup via OBD.

Posted by: jean at 06:32 AM | No Comments | Add Comment
Post contains 82 words, total size 7 kb.

TheYanhua YH35XX programmer and simulatorare used to correct mileage for BMWs after 2015.08+. The odometer chip is a 35160WT/35128WT EEPROM that is not erasable.

Independent programmer with software inside.Software can be run directly when the programmer is connected to PC.

Free download Yanhua YH35XX programmer software

Download Link

How to install and use Yanhua YH35XX programmer?

1.Insert the programmer into the computer and the computer recognizes a U disk named 35XX programmer
2.Open the U disk, find the executable with theBMW_ODO_Professional_edition.exeorBMW_ODO_Standard_edition.exename, and double-click to run.
3.Wait a few seconds after the program runs, and read and write the chip when the status bar at the bottom of the application says, "programmer connection successful.”

Tip: If the program runs incorrectly, or the program show you for a missing Microsoft .NET Framework4.6 runtime, Please download and install the Microsoft .NET runtime, and then restart the program.
Refer to the download connection below, copy it to your computer browser and open it:
https://www.microsoft.com/zh-cn/download/details.aspx?id=48130

Read detailed guide:

How to use Yanhua 35XX Programmer and Simulator to Reset 35XX Odometer?

Posted by: jean at 07:29 AM | No Comments | Add Comment
Post contains 180 words, total size 4 kb.

Devices like Xhorse, Yanhua, Lonsdor, Autel, and Xtool have made it possible to program BMW BDC I keys via OBD without the need to disassemble the BDC module from the vehicle. In this article, we’ll walk you through how to add a spare BMW BDC I key using Xtool devices, whether you’re using the affordableXtool IP616($329)or the more advancedXtool X100 PAD3,H6 ProorD9S Prowith theKC501 programmer.

Step 1: Back Up Coding

Go to Special Function- Key Programming- BMW- Select by Immobilizer- FEM/BDC I
Read key information.
This system requires Pre-processing to generate a dealer key.

Before starting the key programming process, it’s crucial to back up the vehicle’s coding. This ensures that if any coding is lost during the process, you can easily restore it.

• Go toCode Operationsand selectBackup Coding.
• Xtool provides an option to restore coding if needed, which adds an extra layer of security to the process.

Step 2: Pre-Processing FEM/BDC

The next step is to perform pre-processing on the FEM/BDC module. This step is essential for generating a dealer key and preparing the system for key programming.

• SelectPre-processing FEM/BDC.
• The BDC type supports OBD pre-processing, meaning you don’t need to connect to an external platform or disassemble the EEPROM.
• Ensure the Xtool device is connected to the internet.
• ClickYesto perform OBD pre-processing.
• The pre-processing process will take approximately20 minutes. During this time, make sure the vehicle is connected to a stable power supply to avoid any interruptions.
• Once pre-processing is completed, you’re ready to move on to the next step.

Step 3: Add Key

With pre-processing complete, you can now proceed to add the new key to the vehicle.

• Go toKey Operationsand selectProgram Key.
• If the system displays a message sayingSWFL is lost, don’t worry. If the module has been successfully pre-processed via OBD, you can ignore this message. Alternatively, you can use theUpgrade FEM/BDCoption to restore the module after programming the key.
• Select a key position and chooseAdd Key.
• The maximum number of keys that can be programmed is3.

Step 4: Programming the New Key

Now it’s time to program the new key.

• Place theoriginal keyin the car’s key induction area and switch the ignition toON. This will allow the system to extract the FEM security key and ISN code.
• Next, place thenew keyin the key induction area.
• Remote control frequency is433MHz.
• Once the new key is successfully programmed, you’ll receive a confirmation message.

By backing up the coding, performing pre-processing, and carefully following the key programming steps, you can efficiently add a spare key to a BMW vehicle. This not only saves time but also ensures that the vehicle’s security system remains intact.

Posted by: jean at 06:10 AM | No Comments | Add Comment
Post contains 448 words, total size 9 kb.

Xtool is also powerful for Renault key programming. Here we show how to add a spare key to 2016- Renault Master withXtool X100 PAD3/IP616etc and KC501.

Go to Special Function- Key Programming- Select by Model- Renault- Master- 2016 onwards.

Select Program Keys.

Switch ignition off and remove key.

Read pin code successfully.

Hit OK to program key.

Follow promotes to program 1st and 2nd key.

Programming completed in 2 minutes.

Posted by: jean at 07:44 AM | No Comments | Add Comment
Post contains 80 words, total size 9 kb.

Recently, some customers have experienced module damage when performing add key functions onBMW G chassis BDC02usingAutel IM508orIM608.

1. Failure to strictly follow the operation guide and connection instructions– Incorrect wiring or not adhering to the step-by-step procedure can result in module or chip burnout. Please carefully read and follow the operation guide and procedure prompts.

2. Neglecting electrostatic precautions– Static electricity in the working environment can damage the module or chip. It is strongly recommended to wear an anti-static wrist strap throughout the entire process.

3. Incorrect grounding of the EEPROM PIN2– The PIN2 of the EEPROM module must be connected to the specified ground line as shown in the diagram. Using any other ground connection may result in chip damage.

Posted by: jean at 06:47 AM | No Comments | Add Comment
Post contains 164 words, total size 4 kb.

In this article, we’ll walk you through the steps to program a spare smart key for a 2023 Maserati Ghibli using the Lonsdor K518 Pro key programmer.

Tools and Equipment Needed:
– **Original smart key** (for authentication)
– **New smart key** (to be programmed)
– **Lonsdor K518 ProProgramming tool** (specific to the vehicle’s make and model)
– **FCA 12+8 gateway adapter

NOTE: add key only. K518 Pro cannot do all keys lost yet.

Step-by-Step Process

Function requires 12+8 SGW adapters. Connect gateway adapter and k518 pro device with vehicle.

Go to Immo & Remote- Maserati- Select from vehicle- Ghibli- 2016-2023

Backup immo data (obd)

Turn off ignition switch and turn on emergency lights.

Reading data in 2 minutes.
EEPROM is saved.

Select Add smart key.
Select eeprom just saved.

Turn off ignition switch and turn on emergency lights.
Keep only one smart key needed to be programmed inside car and take other keys outside car.

Press the lock key or unlock key once.
Put the key on the Start button and press the Unlock button once within 30s.

Program completed.

Test the new key. Done.

www.obdii365.com

Posted by: jean at 06:59 AM | No Comments | Add Comment
Post contains 197 words, total size 9 kb.

Autel BMW BDC2 function new user report: bmw series 7 bdc2 g12 add key successfully by autel.

Tools used;

Autel IM508S with XP400 ProorIM608

Autel G-Box 2/G-box 3

BMW BDC2 license 1 session $120 or$990 for 1 year

Autel ikey universal key BMW style(available in3-buttonand4-buttonconfigurations)

Power supply

Do always backup coding before operation.

Then do key programming (ECU preprocessing) and add key.

Photos attached:

Posted by: jean at 07:56 AM | No Comments | Add Comment
Post contains 74 words, total size 11 kb.

OBDSTAR released new immobilizer software update in Feb. 2025.

Supported Tools:

• X300 DP PLUS
• X300 MINI GM
• KEY MASTER 5/X300 Pro4
• X300 MINI PSA
• X300 MINI CHRYSLER
• X300 Classic G3
• X300 MINI FAT

The software version for DP PLUS is different from above, and software updates may differ depending on the product configuration.

MAJOR UPGRADE

DODGE Version: V43.78

1. Add blade key programming (Supported AKL) for DODGE MEXICO
2. Add proximity All Keys Lost for below models:
   • DODGE MEXICO JOURNEY 2021-2023
   • DODGE MEXICO ATTITUDE 2025

TOYOTA [Version: V43.15]

Add proximity Program Keys (Supported AKL) for below models:

• TOYOTA/ASIA.CROWN SIGMA 2025
• TOYOTA/AUSTRALIA.CROWN SIGMA 2025
• TOYOTA/EUROPE CROWN SIGMA 2025
• TOYOTA USA-CANADA.CROWN SIGMA 2025
• TOYOTA/AFRICA.CROWN/AVALON) 2025
• TOYOTA/ASIA.CROWN/AVALON) 2025
• TOYOTA/AUSTRALIA.CROWN/AVALON) 2025
• TOYOTA/EUROPE CROWN/AVALON) 2025
• TOYOTA USA-CANADA.CROWN/AVALON) 2025
• LEXUS ASIA RZ200E 2025
• LEXUS AUSTRALIA LX70RH 2025
• LEXUS AUSTRALIA RZ200E 2025
• LEXUS EUROPE LX70RH 2025
• LEXUS EUROPE RZ200E 2025
• LEXUS USA-CANADA RZ200E 2025
• LEXUS USA-CANADA LX70RH 2025

PSA [Version: V42.75]

1. Add Read PhCode function for below models:
   • CITROEN JUMPER 2019-
   • CITROEN RELAY 2019-
   • PEUGEOT BOXER 2019-
2. Optimized software.

FIAT [Version: V43.10]

1. Add Read PhCode function for below models:
   • FIAT AUSTRALIA DOBLO BLADE 2019-
   • FIAT EUROPE DOBLO BLADE 2019-
   • FIAT NORTH AMERICA DOBLO BLADE 2019-
   • FIAT EUROPE DUCATO BLADE 2019-
   • FIAT MIDDLE EAST DUCATO BLADE 2019-
   • FIAT EUROPE FIORINO BLADE 2019-
   • FIAT AFRICA TIPO BLADE 2019-
   • FIAT EUROPE TIPO BLADE 2019-
   • FIAT MIDDLE EAST TIPO BLADE 2019-
   • FIAT SOUTH AMERICA TIPO BLADE 2019-
   • FIAT AFRICA DUCATO BLADE 2019-
   • FIAT ASIA DUCATO BLADE 2019-
   • FIAT EUROPE DUCATO BLADE 2019-
   • FIAT AUSTRALIA DUCATO BLADE 2019-
   • FIAT SOUTH AMERICA DUCATO BLADE 2019-
   • FIAT ASIA DAILY BLADE 2019-
   • FIAT EUROPE DAILY BLADE 2019-
   • FIAT AUSTRALIA DAILY BLADE 2019-
   • FIAT SOUTH AMERICA DAILY BLADE 2019-
2. Optimized software.

GM [Version: V43.66]

1. Add blade key programming function for below models:
   • CHEVROLET IT MEXICO AVEO 2024
   • CHEVROLET IT MEXICO AVEO HB 2024
   • CHEVROLET IT MEXICO STO MAX 2023
   • CHEVROLET IT MEXICO TORNADO VAN 2023
2. Add proximity by programmers function for below models:
   • CHEVROLET IT MEXICO AVEO 2024
   • CHEVROLET IT MEXICO AVEO HB 2024
   • CHEVROLET IT MEXICO CAPTIVA 2024
   • CHEVROLET IT MEXICO CAPTIVA 2023
   • CHEVROLET IT MEXICO CAPTIVA 2022
   • CHEVROLET IT MEXICO GROOVE 2022
   • CHEVROLET IT MEXICO STO MAX 2023

G3 also update RFID unlock key software.

Add unlocking function forSubaru 4D/8A smart key.

Posted by: jean at 06:00 AM | No Comments | Add Comment
Post contains 378 words, total size 5 kb.

2024/2025 Subaru Crosstrek proximity all keys lost, what tool will do?

Autel IM608 IIconnects fine but says that it does not recognise this version of the module. Failed to read EEPROM data via OBD. Autel suggests reading eeprom of SMT by dump. But it is not able to read RH850.

Here is the clue.

IM608 does not support 2024crosstrek. The highest it supports is 2021 which should technically cover up to 2023 as its the same exact car as a 2021 but 2024 being a new body.

2023 and under we can use im608 to do reset or just generate analog key and do that way. The 2024 wasn’t even an option on the Autel.

2024- Crosstrek is currently unsupported by OBD for all keys lost by any tool.Autel and obdstar neither are capable of doing a car AKL this new yet.

A few tools can do add key ONLY, i.eOBDSTAR G3.

It’s relatively similar to Toyota smart key in general hardware architecture being based around an RH850 processor.

Smart Pro supports this platform but not AKL on Crosstrek, only Forester & Outback right now for AKL. There’s model specific passwords to read-write memory to enable OBD AKL.

If you read the RH850 directly you can probably recover enough data to emulate an existing key and add new ones but it’s a fair amount of work. Dealer method only requires replacement of smart box and steering lock now so a lot less onerous than it used to be. But then you need the dealer tool to VIN code it and a special programming code from Subaru internal support. The OBD support is being worked on, but it is slow because we need access to smart boxes from wrecked cars, and being such a new model it is rare to find sets for development.

The dealer replaces the SMT modules (Keyless Access Module) when it’s an all keys lost situation.

So if no after market option exists for the immo reset then buying new modules is your only other option.

Posted by: jean at 06:38 AM | No Comments | Add Comment
Post contains 350 words, total size 5 kb.
