An increasing number of users are interested inXhorse Key Reader, and asked some questions that Xhorse engineer think It is necessary to make an answer in this article so that more people are familiar with this device.

Question 1. why experts develop Xhorse Key Reader?

Answer: well the reader has three significant features:

1. It is able to identify aluminum keys, plastic keys as well as metal keys. Aluminum keys and plastic keys are not supported in key cutting machines and it’s a big troublesome to get the bitting code, so key reader greatly compensates for that.

2. Probe breaking can be avoided using key reader.

3. Xhorse Key Reader is much more accurate and faster than taking a photo to identify key data.

Question 2. Will key reader work on APP?

Answer: Sure, you can either use your smartphone or key cutting machines likeDolphin XP-005or use a key cutting machine with green such asCondor XC-Mini Plus/XP-005Lto copy a key.

By smartphone, you can obtain key bitting and cut a key with a key cutting machine. By using key cutting machines with screens, you can directly cut the key with simple clicks on the machine.

Question 3. doesXhorse Blade Skimmersupport edge cut keys?

Answer: yes we’ll demonstrate the process.

Just insert the key and click "identification” on the screen.

Job is done, it is very easy, right?

Question 4. does Xhorse Key Reader identify HU162T?

Answer: HU162T decoder is mainly for VW, Audi, Seat, Skoda cars.

Though it’s special with 3 sides, it is metal keys. So, for sure key reader is able to identify it.

Question 5. Does Xhorse Key Reader identify Honda keys?

Answer: definitely, it’s acknowledged that Honda keys tend to wear off easily.

yet you can still acquire accurate key bitting results with key reader.

‘

Question 6. Does Xhorse Key Reader support plastic / aluminum keys?

Answer: sure, that’s the biggest advantage of this tool.

Question 7. how much is Xhorse Key Reader and when will it be available?

Answer: for the price, Xhorse will set a list price for the product global, for example, Key Reader retails at $350, and for the varied country, it takes a varied amount of time for the device to be shipped. It is suggested to contact your area dealer for detailed purchase info, i.e

https://www.obdii365.com/wholesale/xhorse-key-reader.html

Posted by: jean at 06:56 AM | No Comments | Add Comment
Post contains 390 words, total size 12 kb.

6). ACDP often cracks out both SWFLs in the FEM BDC, without SWFL no ignition, without ignition no flashing of the SWFL .. Furthermore, the ACDP often screwed downgrade from the CAS3. So does vvdi and other BMW programmemrs.

7). the only problem that i used to have with mini acdp is when making Keys for CAS4/4+. And thats why I always make backup with VVDI before even connecting mini acdp to CAS4.

Posted by: jean at 07:31 AM | No Comments | Add Comment
Post contains 201 words, total size 2 kb.

uide: how toRetrieveLaunch X431 PAD V/PAD VIIdiagnostic scanner login Password.

Hit 'Login'- Retrieve Password

Fill in serial number and user name

the registered email will be automatically obtained

press Get Verification code by Email

Go to Email, paste verification code here

Input new password and confirm

The password length needs 8-20 characters, contain numbers and characters, and cannot contain sensitive works, cannot be consistent with the user name

Password reset successfully

Login with user name and new password

Posted by: jean at 06:07 AM | No Comments | Add Comment
Post contains 85 words, total size 5 kb.

Here is the tutorial on immo relearning for new key programming on GMC L5P Duramax using GM MDI2 clonescanner and SPS2 (Service Programming System).

L5P immobilizer relearn with AC Delco Techline Connect Software:

Before you can go to your web browser

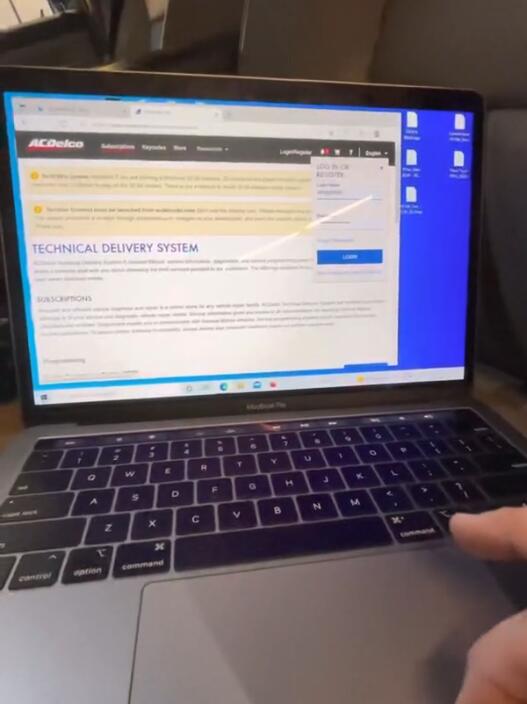

you’re gonna run it as administrator acdelco website

if you don’t already have an account you got to make one

log in

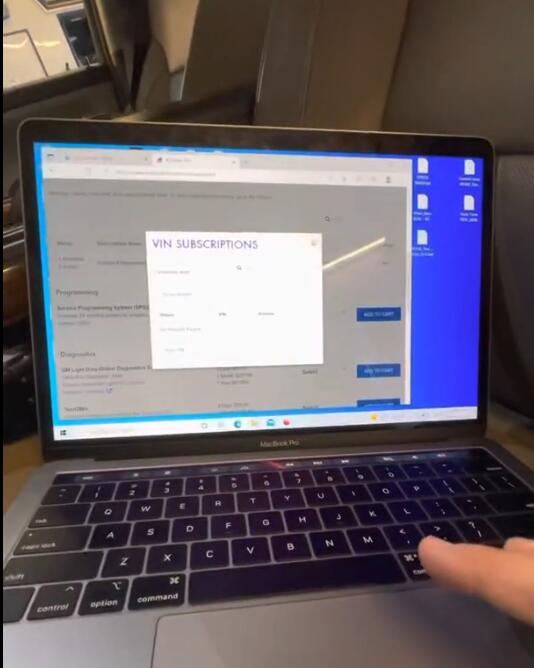

all right i came in earlier and purchased my one vin

so here’s where it changes completely um

go to view and add

well now before you can do this

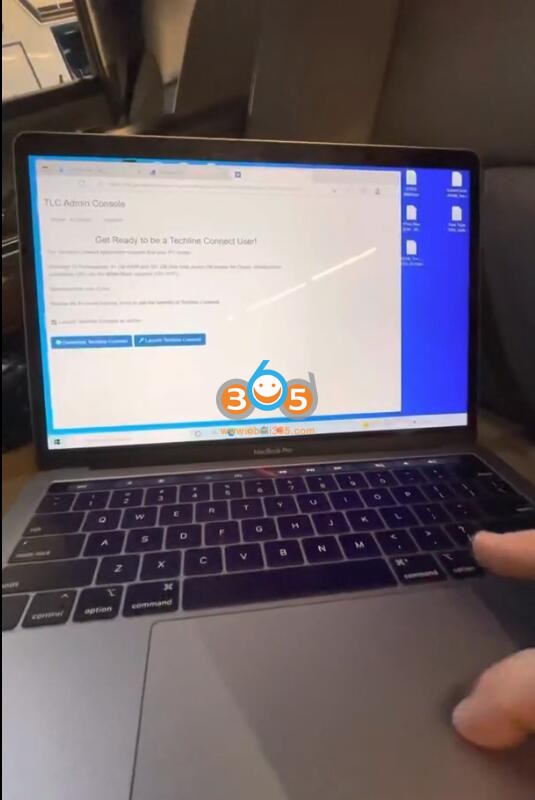

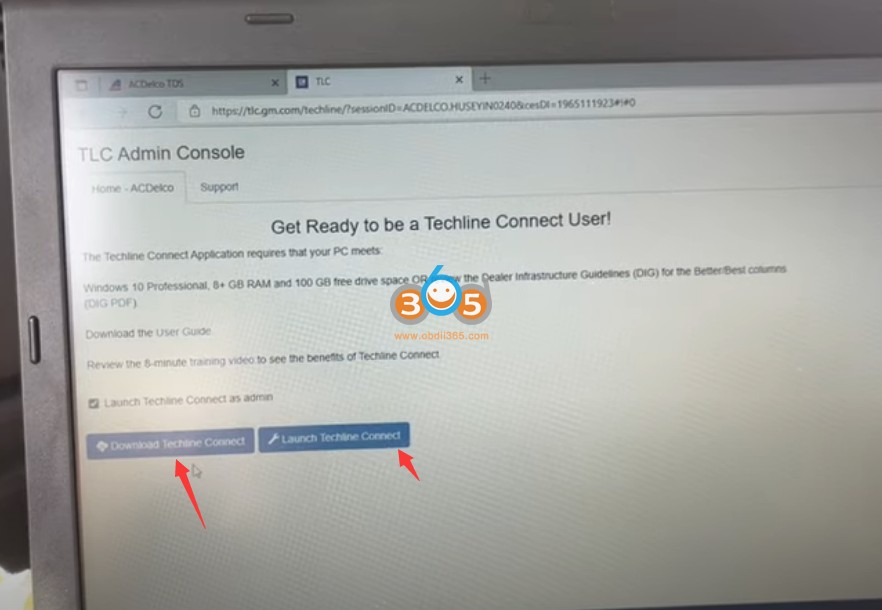

there’s a new software Techline Connect

First time you’ll have to download it

takes quite a while

you’ll actually have to open the program

three different times for it to be

installed all the way

that’ll install

everything that you need to proceed it’s

kind of an all-in-one thing now

so once you’re here you’ll have this

launch as an admin

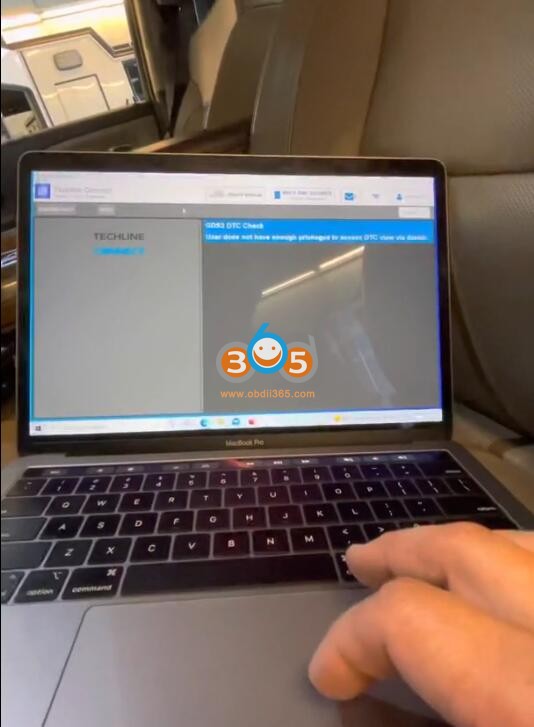

so you’ll launch it

the same way make sure you have internet connection wherever you’re at this will automatically connect to the internet

This is showing because i came up i came in here earlier and connected it with my vehicle

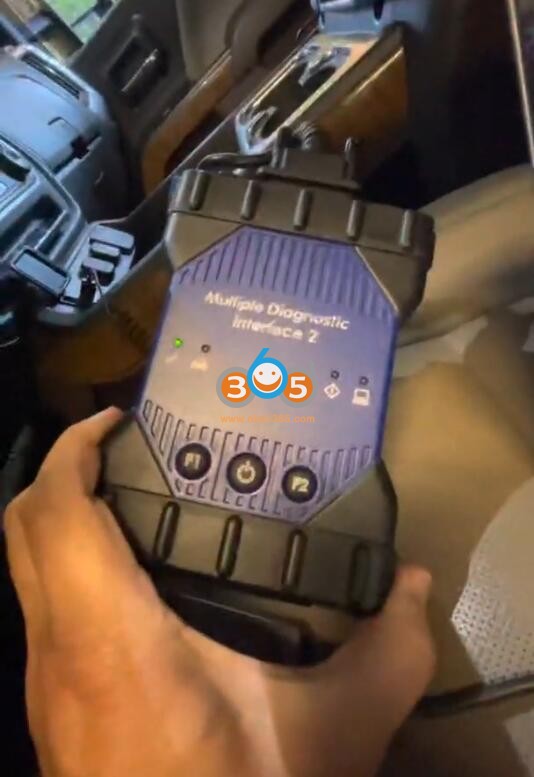

i’m gonna hook up the MDI

all right same deal you got the green light here

see what happens here

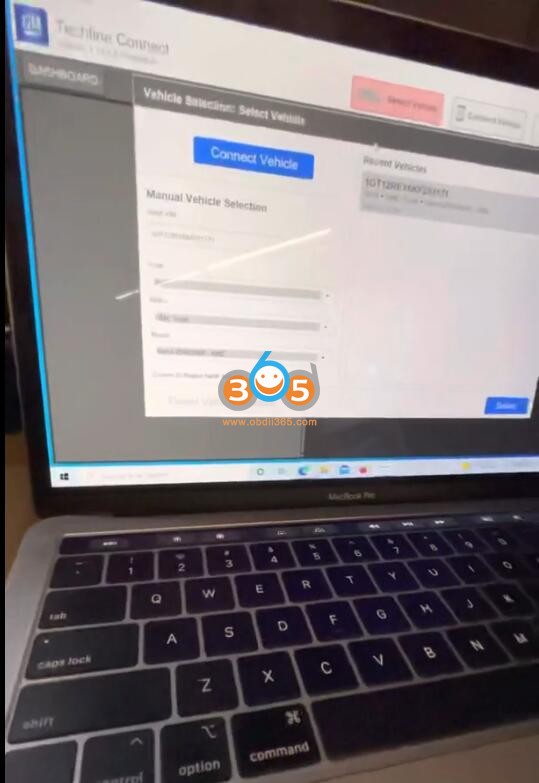

i’m gonna try connect the vehicle

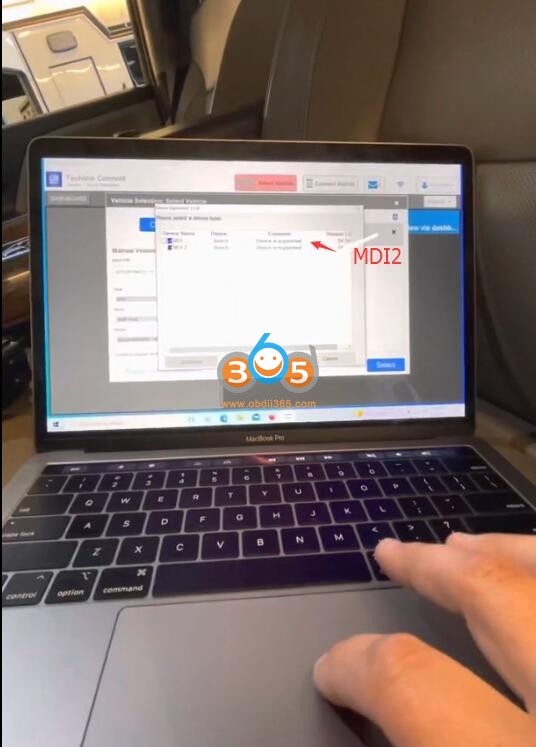

i’m choosing theMDI2and see what happens

i think what i have is an mdi1 though

all right it looks like everything’s connected

we’re gonna select vehicle

i’m actually going to close my door

all right

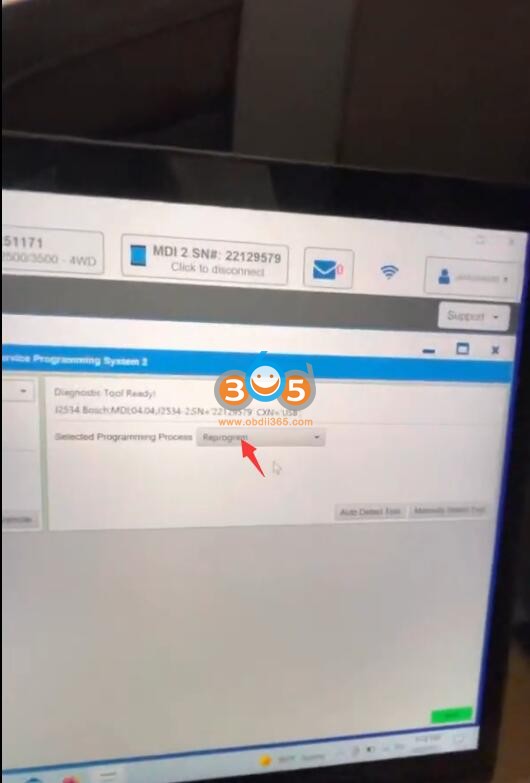

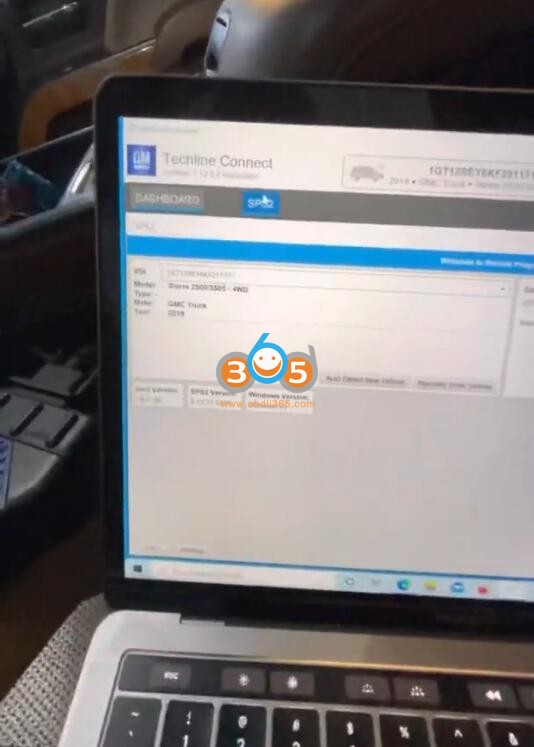

so we are at this part here we’re gonna click up at the top SPS2 which is the menu section we’re already in

select programming reprogram and then there’s a little green next

button at the bottom we’re gonna do that

then we’re going to scroll right here

immobilizer relearn

z1

next

it asks me if i want to use my vin that

i bought earlier i’m going to proceed when programming

next again

body control mobilizer relearn with existing transponder

we’re gonna next

turn the vehicle on to run do not start

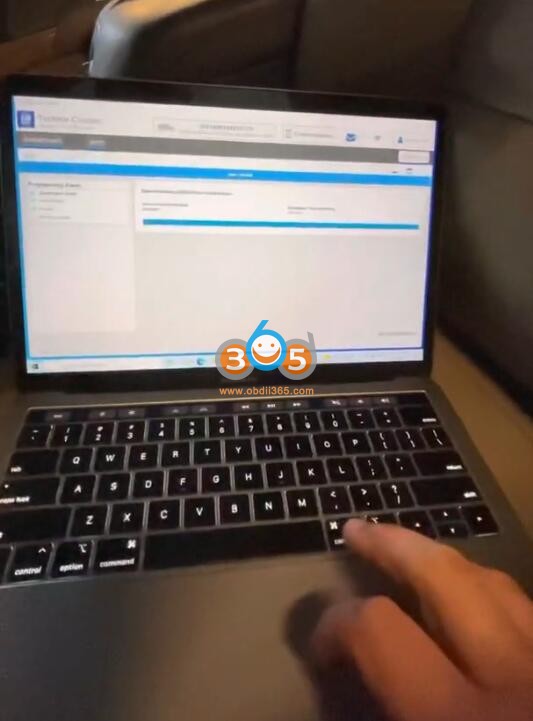

please wait

i believe now we’ll just follow prompts

not gonna wait 12 minutes

You need to come back when 12 minutes is over. Follow SPS2 prompts until completed.

www.obdii365.com

Posted by: jean at 08:50 AM | No Comments | Add Comment
Post contains 387 words, total size 13 kb.

2M2 Magic Tank key cutting machine Update in October: 1. add household key/residential key (especially practical in the United States), 2. add "Find Bitting” option. BTW, 2M2 is available with 5 language now: English, Spanish, Portuguese, Russian, Italian etc.

1. How to duplicate household key with2M2 Magic Tank?

Prepare one new household key and 2M2.

Tap the function button and select "Universal Key Duplicate”.

Look for the house key, tap "Copy key”.

Install the household key onto the clamp, and then start cutting automatically.

Watch video below:

2. Have an overview the Find Bitting of2M2 Tank key cutting machine

There are menu: cut by bitting, all key lost, decoder tool, finding code.

"Cut by bitting” options shown as below:

"All key lost” options shown as below:

Input the code, vehicle and tap "Search code”.

"Bitting Code” options shown as below:

Alright, next have an overview the actual function including: generate key type, create keys by Camera, Customize key data, universal key duplicate, key creating etc.

Here are the options of ” generate key type”.

Here are the options of ” universal key duplicate”.

Flat key two sides, flat key one side, laser key inner two sides, laser key inner one side-2, laser key inner one side, laser outer two sides, Laser key, standard key etc.

Okay, if you are interested in 2M2 Magic Tank key cutting machine, contact at:

https://www.obdii365.com/wholesale/2m2-tank-key-cutting-machine.html

Posted by: jean at 08:51 AM | No Comments | Add Comment
Post contains 237 words, total size 11 kb.

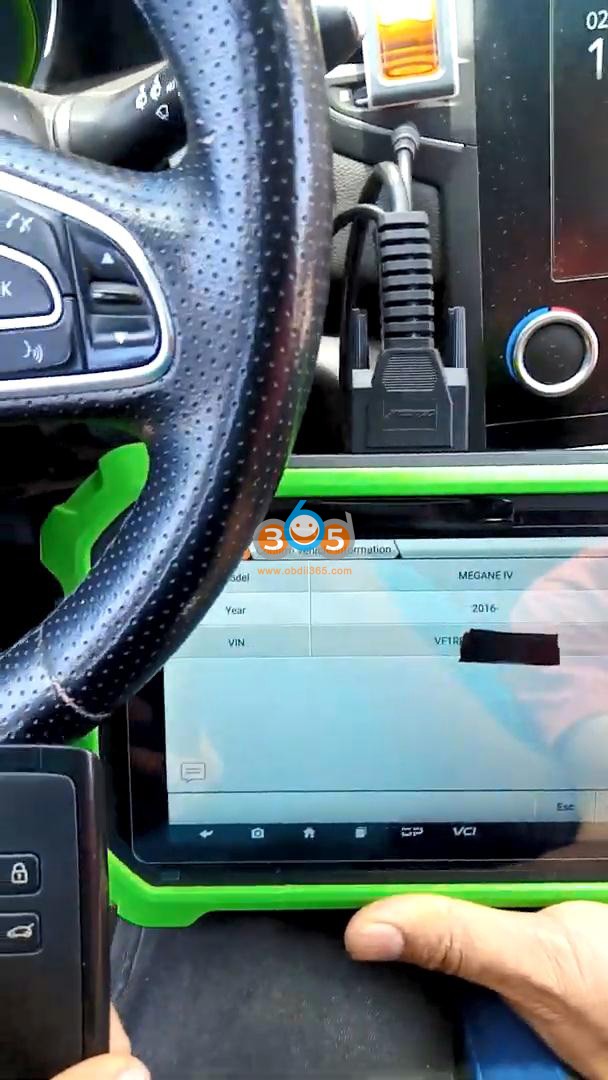

OBDSTAR X300 DP Plus/X300 PRO4Key Master 5 test report: Renault Megane IV 2016- Key Programming Success.

PS: the green one obdstar is as the same as OBDSTAR X300 DP Plus in orange color. ARenault green converteris required.

The operation path:

Take PRO4 Key Master 5 for example (the same as 300 DP Plus).

Car Immo -> Renault Dacia Samsung -> Manual Select Model -> Renault -> Megane -> 2015- > Blade -> Enter -> Enter -> continue.

Good to know:

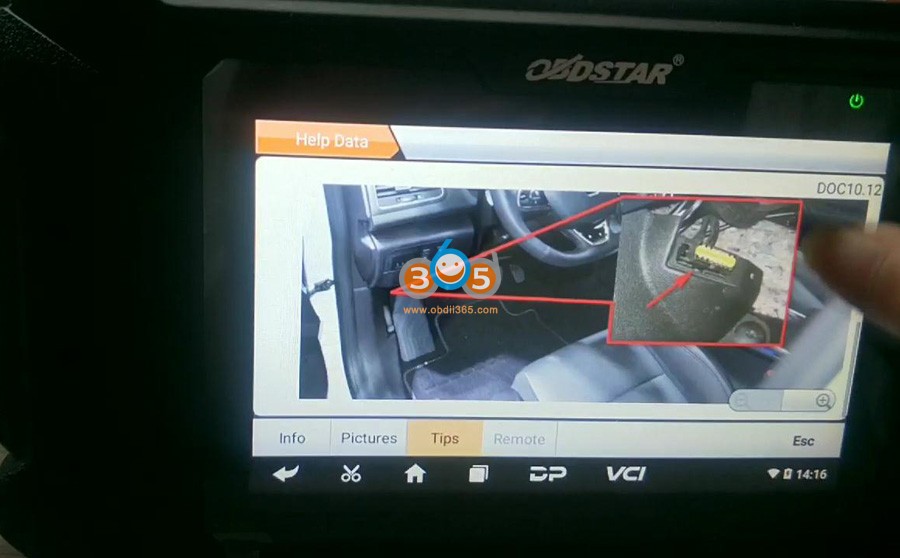

The tablet X300 DP Plus/ PRO4 comes with help data including info, pictures, Tips, remote etc. Just read it carefully before you operating.

Enjoy!

Video reference:

Posted by: jean at 08:58 AM | No Comments | Add Comment
Post contains 116 words, total size 8 kb.

Problem: Turned on myAutel MaxiSys Pro MS908Ptoday and purchasedone-year subscriptionservice and did some update, but it still said my subscription is expired, actually it doesn’t expire until October 10th, 2022, how to solve the problem?

Autel chief engineer replied:

Please click on "Cancel” to see if it can download and update, if not please upload log via MaxiTool and Autel tech will reach you.

What about other users’ experiences:

Generally speaking, do a full factory reset on your tool before your subscription expires to refresh your Maxisys line tools (Maxisys MS906,MS906BT, MS908P,Elite, MS909 etc). Also use a 32 GB SD card to expand internal storage. Part of the problem is your tool has run out of memory.

1. How to do Factory Reset?

If not expired, you should connect your Autel MaxiSys Pro device to any laptop using the black usb cable and after the laptop detect the usb driver, turn off usb and unplug the cable, reset your device and try again.

2. Use a 32 GB SD card to expand internal storage

Firstly, to create a backup, simply insert the Micro SD card into your tool and open the base screen (not the diagnostic application). Then open ES File Explorer. There you will find two instances of SD Cards. Open the internal drive, usually label "SD_CARD” or similar. Hold your finger on "SCAN” to bring up lower menu. Select copy. Now open the external SD card, label "EXT_SD” or similar.

Paste the copy of "SCAN” here. Depending on model of scan tool this can take up to 3 hours. Once this is done, remove the SD card and store it somewhere safe where it will not be damaged. It is very small so store it somewhere you’re not going to forget it.

Now take the second 32 GB card, insert it into your Autel/Auro tool and repeat the above process. Leave this one in your tool after backup. Update this once a month until your subscription expires, swap with the other backup, repeat.

Now you don’t have to stress it when something crashes.

The Autel line of tools will only recognize up to 32 GB Micro SD Cards. We highly recommend buying this pair of 2x 32 GB Micro SD cards to create redundant backups in case of file corruption.

Alright, if Autel MaxiSys Pro software subscription is actually expired, here is 1 Year Software Subscription Total Care Program:

https://www.obdii365.com/wholesale/autel-maxisys-pro-ms908p-1-year-software-subscription.html

Read also:

Posted by: jean at 07:24 AM | No Comments | Add Comment
Post contains 412 words, total size 4 kb.

To view the information about when theAutel Maxisysdevice expires, the user can see directly on the device:

1. Support APP>>My Account>>Expire Date;
2. Update APP>>Renew

Look at the Autel Maxisys Pro device image below, it is said software license has expired. You have to renew license.

Is it necessary to pay for the update?

Updates are to fix existing problems, new car functions and system functions.

If you think the updates are too much, you have the wrong scanner, or need to make more money. And I see others who don’t update them, and they don’t do certain functions, and are slow as hell.

Autel Maxisys Elite One Year Software Subscription

And more:

Autel Maxisys MS908 One Year Software Subscription

Autel Maxisys Pro MS908P/ MK908P/ MS908S Pro 1 Year Software Subscription Total Care Program

Q: Can I update early if I have the card or will the subscription update start today?

Q: My Maxisys says software subscription is expired but it actually does not expired.

A: Do a full factory reset on your tool before your subscription expires to refresh your tool. Also use a 32 GB SD card to expand internal storage. Part of the problem is your tool has run out of memory.

Q: if the online programming and coding continues to work after the subscription expires?

A: No, needs to current for it to work.

Posted by: jean at 06:09 AM | No Comments | Add Comment
Post contains 312 words, total size 4 kb.

In stock!Autel OTOFIX IM1Automotive Key Programming & Diagnostic Tool. OTOFIX IM1 is an advanced and smart key programming tool that combines powerful immobilizer (IMMO) and programming functions with OE-level diagnostics and advanced service functions in one Android-based 7-inch touch screen tablet.

With the included key programmer OTOFIX XP1 and VCI OTOFIX V1, the OTOFIX IM1 is an easy-to-use key programming tool that covers most vehicles.

Image 1: The first batch of OTOFIX is in stock.

Part 1. Autel OTOFIX IM1 smart key programmer Unboxing

Open the box and we have: OTOFIX IM1 Main Unit, OTOFIX V1, XP1,USB-C to USB-C Cable, APA002, Power Adapter, APA001, APB001 (2pcs), USB-A to USB-C Cable, APB002 , USB-C to Mini USB Cable, Carrying Case and quick Reference Guide

In details…

Come to the front of OTOFIX tablet:we have one 7-inch LCD Capacitive Touch screen, Microphone, power LED (Flashes green when the tablet is charging; flashes red when the tablet encounters a problem) and one Ambient Light Sensor.

Come to the back of OTOFIX tablet:we have loudspeaker, camera, camera flash and the serial number.

Come to the side of OTOFIX tablet:

8. USB OTG/Charging Port
9. USB Port
10. Micro SD Card Slot
11. Power/Lock Button —long press to turn the device on/off, or short press to lock the screen. OTOFIX tablet can receive power from internal battery pack or external power supply).

Next is OTOFIX VI

OTOFIX V1 is a small vehicle communication interface (VCI) used to connect to a vehicle’s data link connector (DLC) and connect with the tablet via Bluetooth or USB cable for vehicle data transmission.

1. Flashlight Button
2. Power LED
3. Vehicle/Connection LED
4. Vehicle Data Connector (16-pin)
5. USB Port

The OTOFIX V1 can receive power from vehicle power, AC/DC power supply.

Next is OTOFIX XP1

OTOFIX XP1 is specially designed to read transponder data (including Mercedes Benz infrared smart key), clone and generate exclusive keys, read/write on-board EEPROM data, and read/write Freescale 9S12 MCUs. By working with the diagnostic tool and PC that are both loaded with programmer software, the XP1 can read/write transponder data quickly and accurately.

1. Vehicle Key Chip Slot—holds the key vehicle key chip
2. Vehicle Key Slot —holds the vehicle key
3. Status LED Light —indicates the current operating status
4. DB15-Pin Port —connects EEPROM Adapter and EEPROM Clamp Integrated MC9S12 Cable
5. Mini USB Port —provides data communication and power supply

Part 2. AutelOTOFIX IM1 smart key programmerregistration and update

For the first time to use Autel OTOFIX IM1 tablet, it is required to register a member with your email address, password.

After that, the tablet will pop up the newest software version that you are supposed to update so that you will enjoy the newest service.

Follow this .pdf file onhow to register / update Autel OTOFIX IM1?

Part 3. get started using Autel OTOFIX IM1

Long press the Lock /Power button to turn on OTOFIX IM1.

Connect the VCI to the vehicle’s DLC (OBDII port), which is generally located under the vehicle dashboard. Follow the on-screen instructions to connect the VCI to the OTOFIX IM1 via Bluetooth.

Ensure the tablet is connected to the Internet and tapUpdateon the home screen to view all the available updates.

1. To perform immobilizer function

The IMMO application provides Smart Mode and Expert Mode to guide technicians performing IMMO related functions, including Key Learning, Remote Control Learning, Remote Control Add, and more.

it requires a connection among the vehicle, OTOFIX IM1 key programming tool and the XP1.

1. Connect the vehicle and the OTOFIX IM1 via Bluetooth or USB cable.

1. Connect OTOFIX IM1 and XP1 with the supplied USB cable.

Select theimmobilizerfunction on the main menu and follow the onscreen instructions to continue.

2. To perform programming function

The Programmer application, for some vehicles, requires a connection between the tablet and the OTOFIX XP1. In some cases, no vehicle connection is required. This application can access the key chip, read, retrieve and write key information, as well as other key-related functions.

Quick guide:

Connect to the XP1 Programmer first, then follow the on-screen instructions to select a key type. Programming can be accessed from the IMMO app directly following a status scan, or from the Home Screen button. The following describes a programming situation requiring EEPROM programming. These steps should only be carried out by professional technicians.

Let’s use Chip Read & Write as an example.

1. Select Chip(EERROM,MCU,ECU) from the Type selection menu.

2. Tap "Chip Read & Write” from the Functions menu.

3. Select the chip type if needed. In this example, select "EEPROM” and follow the on-screen instructions to continue.

4. Select "Read” on the screen.

The chip data screen appears. Tap "Save” to save the data, or tap "Cancel” to exit.

6. Type the file name and tap "Confirm”. The chip data will be saved on the tablet. A message "File Saved Successfully” appears.

7. Select "Write Operation” from the operations menu. The tablet will open the default folder. Select the saved data and tap "Confirm” to write it into a blank chip.

3. Diagnostics

The Diagnostics application can retrieve ECU information, read & erase DTCs, and view live data. The Diagnostics application can access the electronic control unit (ECU) for various vehicle control systems, including engine, transmission, antilock brake system (ABS), and airbag system (SRS).

NOTE:

1. The Diagnostics function can only be accessed with a valid subscription.
2. A message will appear when tapping the Diagnostics icon on the OTOFIX Job Menu for the first time. Read the message and then tap the Purchase button to purchase the Diagnostics and Service package.

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis via OBDII connection. The application performs functional tests, retrieves vehicle diagnostic information such as trouble codes and live data for various vehicle control systems, such as engine, transmission, and ABS.

There are two options available when accessing the Diagnosis section:

1. Auto Scan —starts auto scanning for all the available systems on the vehicle.
2. Control Units —displays a selection menu of all available control units of the test vehicle.

After a section is made and the tablet establishes communication with the vehicle, the corresponding function menu or selection menu appears.

Part 4. Autel OTOFIX IM1 smart key programmer vehicle coverage

Here you go to the official site:https://www.otofixtech.com/vehicle-coverage/coverage2

Look at the image below, select product model: IM1 (IMMO), vehicle make, vehicle model, year, function / Sub-function, and then click on "Search”.

Alright, Autel OTOFIX IM1 is an awesome smart key programmer with diagnostic and programming function, more importantly, it is a cheaper alternative of Autel IM508, recommend it to the locksmith at limited budget.

http://blog.obdii365.com/2021/10/12/autel-otofix-im1-key-programmer-in-depth-review/

Posted by: jean at 09:28 AM | No Comments | Add Comment
Post contains 1100 words, total size 27 kb.

Activation of all brands forAutel ap200 Bluetooth OBD2 scanneris possible, but without special functions (adaptation, coding), only diagnostics for all modules and reset of service intervals. But it is a good alternative for personal use for DIYers.When activated for all brands, the program also performs only diagnostics for all makes. Such an adapter is suitable for personal use and auto-fitting. For car services, it will be a tool for quickly reading errors from all makes.

Activation of all Autel AP200 brands in Xdiag ap200 indefinitely

You can activate in 2 ways:

1) Through theAutel Startprogram

2) Through theXdiag AP200program, which has shown itself to be on the good side in working with Launch adapters.

Here are some images showing Autel ap 200 activations for all brands:

Upon activation of Autel ap200 for all brands, you can search Google (i.e famous 4pda.to website). It has instructions to install cracked app and install database for all cars.

• NOTE:
• This method only works with adapters with old firmware 1.03.
• Autel ap200 + all brands is only possible on android. The functions are the same as in the original MaxiAp program: Car diagnostics for all control units and service interval resets.
• On version 1.23 / 1.26 or on adapter firmware 1.03.14 and higher, it is possible to use ONLY officially purchased brands.

It may pop up "VCI is not connected yet. Please reconnect VCI!”, then please connect the VCI to the vehicle.

Autel Start program:

For work does not need internet. Only for downloads machines.

Not necessary to buy yearly license.

X-DIAG AP200 Program:

Require internet network connection.
Pay for yearly license.

Good to know:

The difference in these activation methods will be described in the next paragraph. Instead of the method mentioned above, there is an activation of Autel ap200 for all car brands without time limits.

Activation of allAutel ap200brands and how long do they work?

1. The activation includes 133 car brands. All brands are available only for Android in the Autel start.apk program. Checking the work of all brands (test version) is free for 3 days.
2. One car brand in the official program is given without restriction. All brands in Autel start.apk need to be renewed every year.
3. Every 2 days the program requires Internet access (preferably through Autel start.apk).

FAQ
Q: Just bought an adapter, firmware version 1.03. What to do?

A: Do not download the application from the playstore (the version from the market flashes the adapter with the latest firmware). Learn methods for opening stamps. You do not need to create an account.

Q:Just bought an adapter, firmware version 1.03.14 and higher.What to do?

A:Use one free brand.Wait for a way to open all brands.Do not ask when the way will appear.

Q:Vci serial number not match error?

A:Replace all default serial numbers in the AutelStore.fcgi file with your own, erase all application data.
And restart the application again.

Autel ap200 is available at:https://www.obdii365.com/wholesale/autel-maxiap-ap200-obd2-scanner.html

Posted by: jean at 06:25 AM | No Comments | Add Comment
Post contains 494 words, total size 10 kb.
